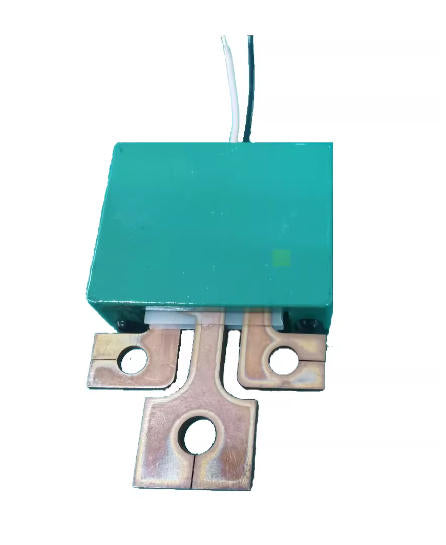

  • EQ4020 planar ultra-thin transformer 1000W for inverter applications

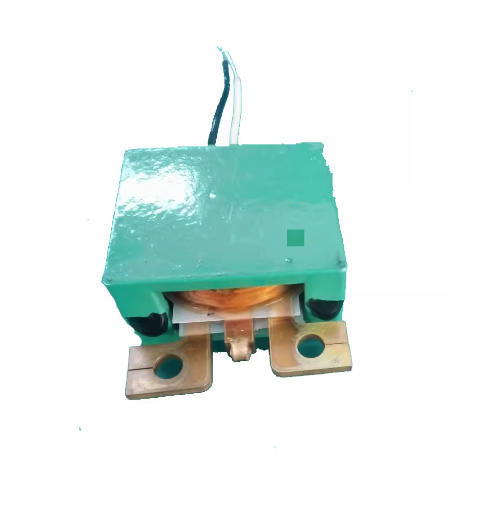

  • EQ4020 high power planar transformer front view copper plate output

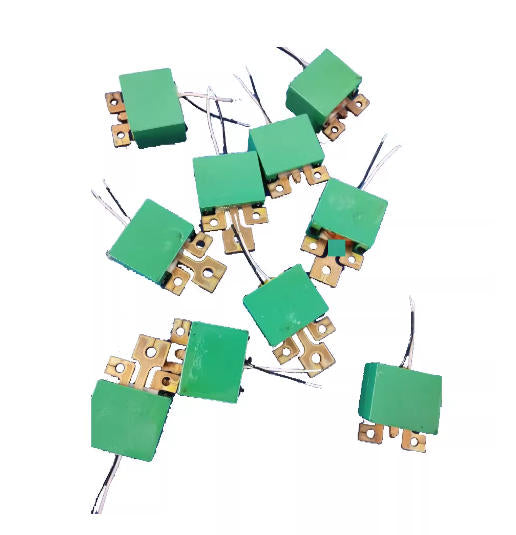

  • EQ4020 planar transformer batch for energy storage systems

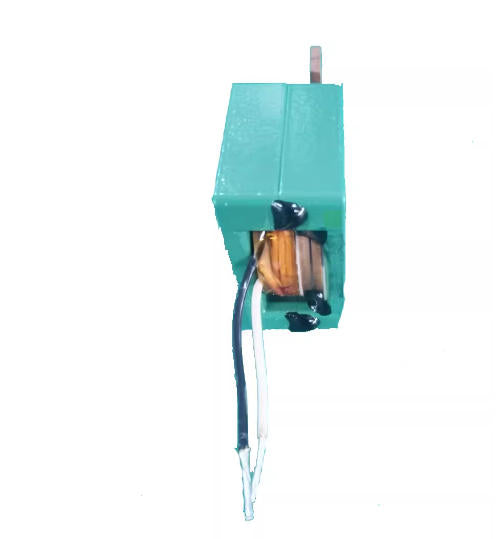

  • EQ4020 ultra-thin transformer side view compact structure

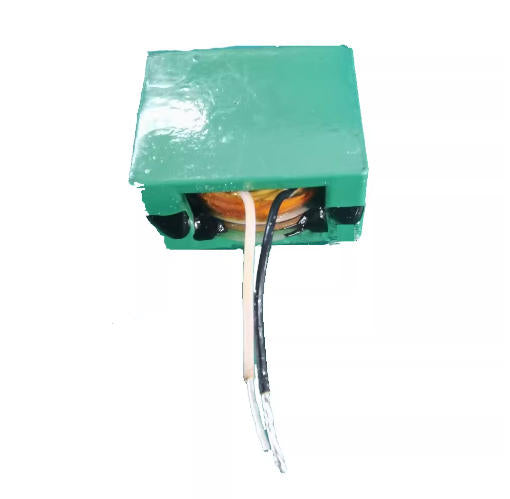

  • EQ4020 copper plate output transformer detail for high current applications
  • EQ4020 planar ultra-thin transformer 1000W for inverter applications
  • EQ4020 high power planar transformer front view copper plate output
  • EQ4020 planar transformer batch for energy storage systems
  • EQ4020 ultra-thin transformer side view compact structure
  • EQ4020 copper plate output transformer detail for high current applications
Planar Ultra-Thin Transformer EQ4020 | 1000W High Power
$15.00 $30.00

Product Description

The EQ4020 planar ultra-thin transformer is designed for high power applications up to 1000W, featuring a copper plate output structure for efficient current handling. It is widely used in inverters, energy storage systems, and photovoltaic applications, offering high efficiency, compact size, and reliable performance.

Applications

  • Photovoltaic (PV) systems
  • Energy storage systems (ESS)
  • Power inverters
  • High power switching power supplies

Specifications

  • Model: EQ4020
  • Type: Planar high frequency transformer
  • Power: Up to 1000W
  • Output Voltage: 12V / 24V
  • Structure: Ultra-thin planar design with copper plate output
  • Application: Inverter and energy systems
  • Customization: Available (OEM & ODM)

Advantages

  • Planar structure for high power density
  • Copper plate output for high current capability
  • Ultra-thin design for compact systems
  • High efficiency and thermal performance
  • Suitable for photovoltaic and energy storage applications

Why Choose Yunleeb

Yunleeb provides advanced transformer solutions with over 10 years of experience, specializing in high power and custom designs for industrial and energy applications.

FAQ

Q: What is the maximum power rating?
A: This transformer supports applications up to 1000W.

Q: What is the advantage of planar transformers?
A: Planar transformers offer higher efficiency, better thermal performance, and compact size.

Q: Is customization available?
A: Yes, we support OEM and ODM customization based on your requirements.
