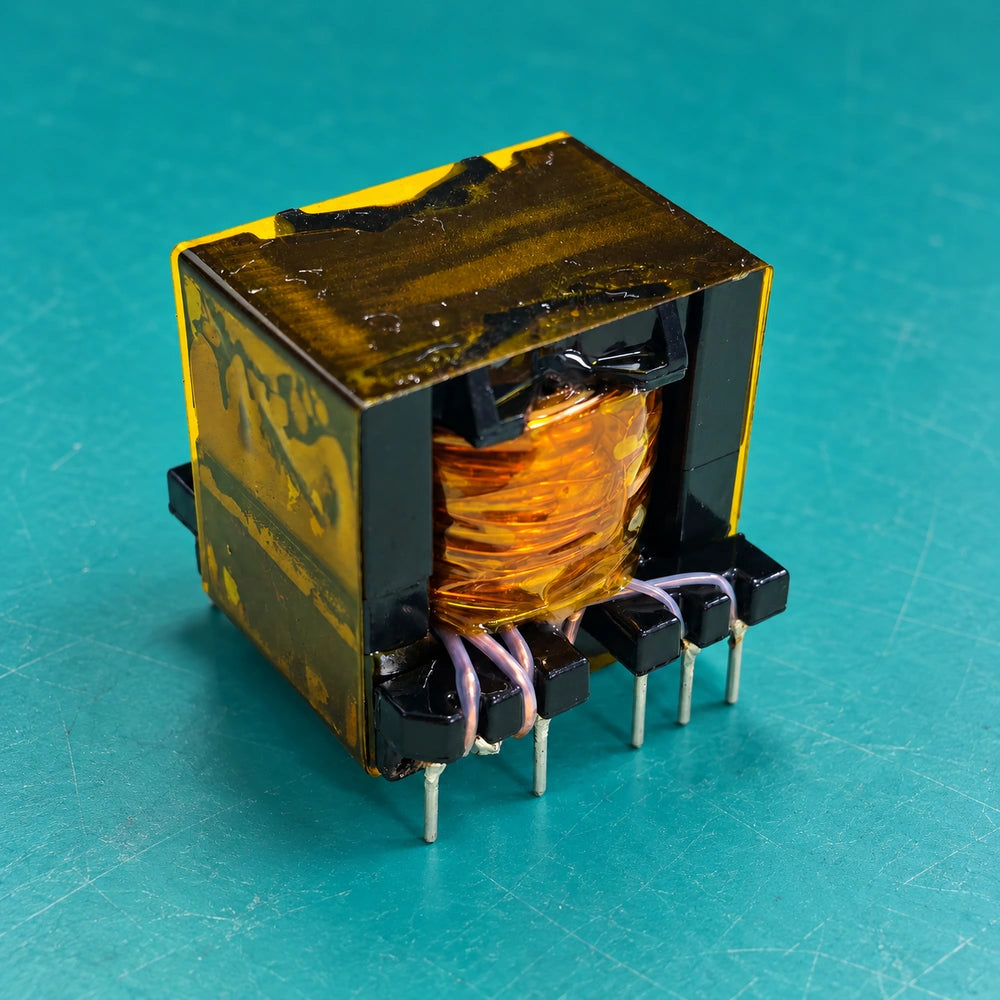

PQ2625 Custom Flyback High Frequency Transformer
The YUNLEEB PQ2625 Custom Flyback Transformer is a magnetic component intended for high-frequency flyback power conversion applications, including switching power supplies and industrial electronic power systems.
Featuring an insulated winding assembly, magnetic core structure and PCB through-hole terminals, this transformer can be customized according to specific electrical and mechanical requirements.
Key Features
- PQ2625 magnetic core format
- Designed for custom flyback converter applications
- High-frequency transformer construction
- Insulated winding assembly
- PCB through-hole mounting
- Custom winding and pin configurations
- OEM / ODM manufacturing supported
- Prototype and small-batch production support
Applications
- Flyback switching power supplies
- AC-DC power supply modules
- DC-DC flyback converter circuits
- Industrial control power supplies
- Electronic equipment power modules
- Custom power conversion systems
Product Specifications
| Model | PQ2625 |
| Product Type | Custom Flyback Transformer |
| Core Format | PQ2625 |
| Mounting | PCB Through-Hole |
| Winding Design | Customizable |
| Input / Output Parameters | According to project requirements |
| Operating Frequency | To be specified |
| Power Rating | To be confirmed by design |
| Customization | OEM / ODM Supported |
Note: Electrical performance, power rating, operating frequency and insulation specifications depend on the final approved design.
Custom Flyback Transformer Design
Flyback transformer design requires consideration of input voltage range, output voltage, power requirements, switching frequency, primary inductance, winding configuration, insulation requirements and thermal conditions.
YUNLEEB supports custom transformer development based on customer specifications, drawings, existing samples and project requirements.
Customization Options
- Primary and secondary winding configurations
- Turns ratio and primary inductance
- Magnetic core specifications
- Wire selection and insulation structure
- PCB pin arrangement
- Mechanical dimensions and mounting requirements
- Electrical and thermal design requirements
Why Choose YUNLEEB?
With over 10 years of experience in magnetic component manufacturing, YUNLEEB provides custom high-frequency transformers, flyback transformers, inductors and other magnetic solutions for power electronics applications.
We support custom development, prototype sampling, flexible order quantities and volume manufacturing according to customer requirements.
Frequently Asked Questions
What is a PQ2625 flyback transformer?
A PQ2625 flyback transformer is a magnetic component using a PQ2625 core format, designed for use in flyback power conversion circuits when appropriately specified.
Can the winding configuration be customized?
Yes. Primary and secondary windings, turns ratio, inductance and insulation arrangements can be developed according to project requirements.
Can YUNLEEB manufacture according to drawings or samples?
Yes. Custom manufacturing based on drawings, electrical specifications or existing samples is supported.
Are small-batch orders supported?
YUNLEEB supports prototype sampling, small-batch orders and volume production.
