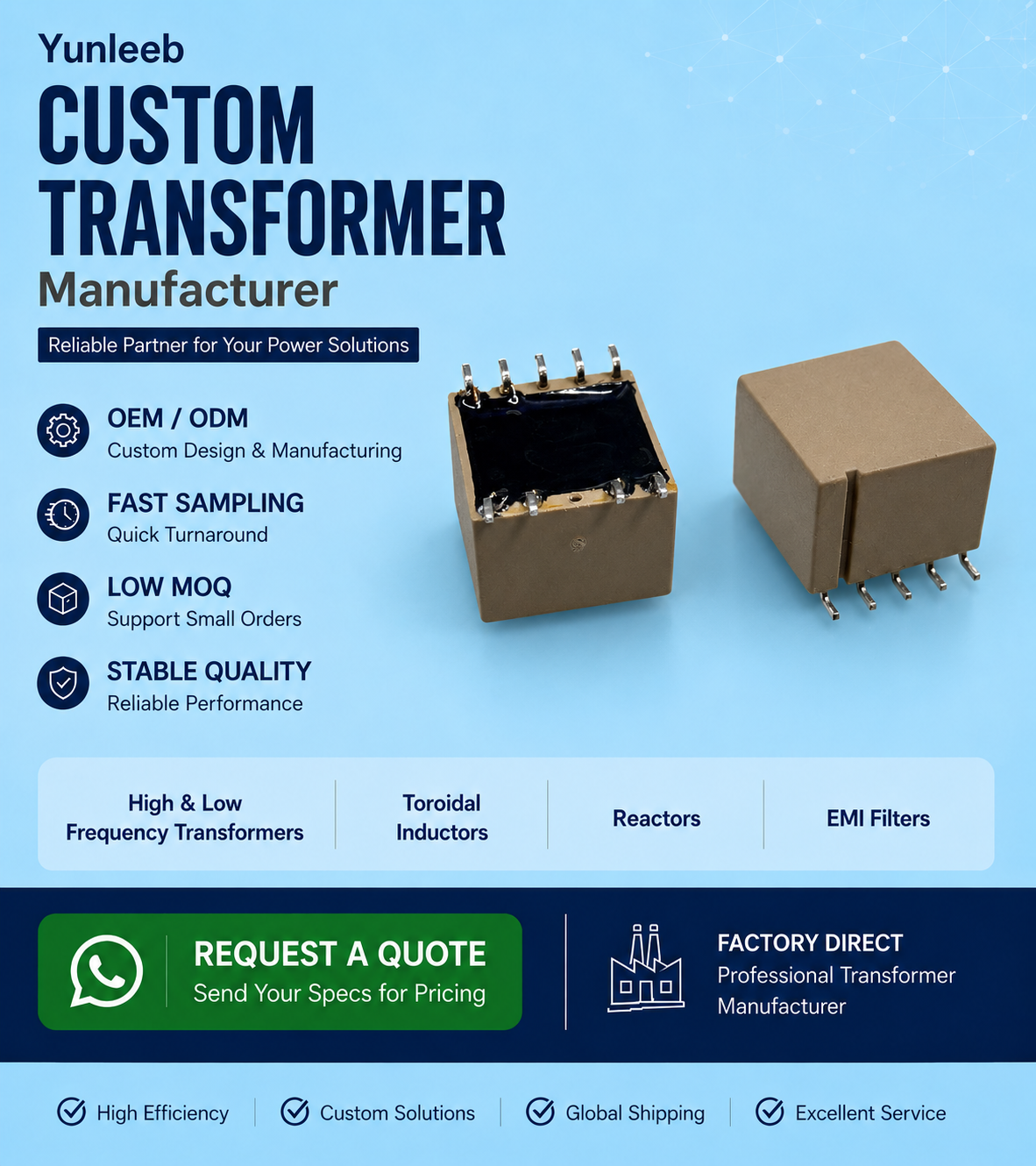

Custom Potted Toroidal Magnetic Component
The YUNLEEB custom potted toroidal magnetic component is designed for PCB applications requiring a compact magnetic solution with customized electrical and mechanical characteristics.
The component features a toroidal magnetic construction enclosed in a protective housing and fully potted for enhanced mechanical protection and structural stability. PCB through-hole terminals provide a practical solution for board-level installation.
Key Features
- Toroidal magnetic construction
- Fully potted design
- Protective housing
- Compact PCB through-hole mounting
- Custom winding and electrical design
- Custom housing and pin configuration
Custom Design Options
As a custom magnetic components manufacturer, YUNLEEB can develop similar components according to specific project requirements.
- Electrical parameters
- Core selection
- Winding design
- Component dimensions
- Pin configuration
- Housing structure
- Potting material and requirements
Custom Replacement and Development
If an existing off-the-shelf magnetic component does not meet your electrical, dimensional, or mechanical requirements, a customized magnetic solution can be developed around the application.
Existing drawings, specifications, part numbers, or physical samples can also be evaluated as references for custom development or alternative magnetic component solutions.
Prototype to Volume Production
YUNLEEB supports custom magnetic component projects from engineering evaluation and prototype sampling through small-batch production and volume manufacturing.
Why Choose YUNLEEB
YUNLEEB specializes in customized transformers, inductors, reactors, toroidal magnetics, and other magnetic components for power electronics and industrial electronic applications. Electrical and mechanical designs can be developed according to individual project requirements.
